Faith Handjet Large Character Portable Printer
Optional 7-32-point online inkjet printer.
This all-in-one model is easy to carry and operate, equipped with safe and environmentally friendly sealed ink cartridges, and easy to disassemble. The 4.3-inch LCD touch screen enables visual operation, and the upgraded nozzle and valve body ensure clear and stable printing. The integrated circuit and ink path save ink costs, and the printing is fast and easy to clean. The four-wheel printing function is suitable for various irregular surfaces, and the standard 16.8V lithium battery provides sufficient power and fast charging.
Product function:Printing font size and number of lines:32 dot matrix: height can be adjusted arbitrarily in the range of 10-126mm, width can be adjusted arbitrarily, can print 4 lines of 7x5 dot matrix characters, 2 lines of 16x16 dot matrix characters, 1 line of 32x32 dot matrix characters.
Printing content: real-time date clock, printing batch, counting, shift, font upside down, left and right flip, real-time date clock, printing batch, counting, shift, font upside down, left and right flip, date.
Printing direction: 360° printingMachine weight: 5KGMachine size: 357*235mmSupport services: 30-day delivery, one-year warranty, support OEM/ODM.
Shenyang Faith Technology Co., Ltd: Your Trusted Handjet Large Character Portable Printer Supplier
At Shenyang Faith Technology Co., Ltd, we pride ourselves on being a leading manufacturer and supplier of high-quality Handjet Large Character Portable Printers. Our innovative solutions combine cutting-edge technology with user-friendly design, offering unparalleled flexibility and efficiency for your marking needs. With over 15 years of R&D expertise and a commitment to excellence, we deliver reliable, portable printing solutions that meet the diverse requirements of industries worldwide.
Product Description: Revolutionize Your Marking Process with Our Handjet Large Character Portable Printer
Introducing our state-of-the-art Handjet Large Character Portable Printer, designed to transform your coding and marking operations. This versatile device offers the perfect blend of portability, precision, and performance, making it an indispensable tool for businesses across various sectors.
Why Choose Our Handjet Large Character Portable Printer?
1. Unmatched Versatility: Print on virtually any surface, from cardboard boxes to metal pipes, with ease.
2. Superior Mobility: Lightweight design allows for effortless transportation across your facility.
3. User-Friendly Interface: 4.3-inch LCD touch screen ensures intuitive operation and quick setup.
4. Advanced Printing Technology: Upgraded nozzle and valve body deliver crisp, clear prints every time.
5. Cost-Effective: Integrated circuit and ink path design minimize ink consumption, reducing operational costs.
6. Environmentally Friendly: Sealed ink cartridges promote safety and eco-consciousness.
7. Long-lasting Power: standard 16.8V lithium battery provides extended usage and fast charging capabilities.
Product Advantages
High-Speed Printing: Engineered to keep pace with fast-moving production lines, ensuring real-time product identification without slowing down operations.
Exceptional Print Quality: Produces clear text and simple graphics, suitable for large fonts and simple designs.
Durability: Prints withstand environmental factors such as water, oil, and UV exposure, ensuring long-lasting readability.
Cost-Effective: Offers low operating costs and efficient ink usage, providing a great return on investment.
Versatile: It can print on various materials such as steel structures, rails, steel sections, cast pipes, cement components, etc., suitable for a variety of applications.
User Guide: Simplifying Your Printing Experience
Getting started with our Handjet Large Character Portable Printer is a breeze:
1. Power on and access the intuitive touch screen interface.
2. Select your desired font size and printing content.
3. Adjust settings for date, batch numbers, or custom text as needed.
4. Position the printer on your target surface and start printing with a simple button press.
5. Easily refill ink cartridges when necessary, following our quick-change system.
Product Structure
16-Dot Matrix And 32-Dot Matrix
 |
16-dot matrix Printing height: 10-60mm |
 |
32-dot matrix Print height: 10-126mm |
Cleaning Function
The black ink pouch can be replaced with a cleaning fluid pouch atany time. lt features a discharge interface, allowing for the instantremoval of black ink from the nozzle and black tubing, and fillingthem with cleaning fluid. This ensures normal operation for thenext use, preventing nozzle clogging and drying out.
Large Capacity Ink Cartridges Multi-Color InkVarious ink types including ketone-based, water-based, and others areavailable and can be customized according to customer needs.It uses cartridge-style ink supply with a 200 mL high-capacity cartridge.enabling quick cleaning and easy replacement.
Ink Cartridge Design
Materials: Corrosion-resistant PA66+GF (nylon + fiberglass)Manufacturing Process: Injection molding, with ultrasonicwelding for the upper and lower shells.
Removable Battery
Powered by a 16,800 mWh battery pack with detachable and replaceablebackup batteries. Charging time is less than 5 hours, and it can operatecontinuously for 6 to 10 hours.
Product Parameters
| Parameter | Specification |
|---|---|
| Software Features | Real-time date and time clock、Batch printing、Counting.Shift printing、Font inversion (upside down)、Horizontal flipping |
| Printing Graphics | Capable of printing logos, symbols, and more |
| Date Code | Supports century, year, month, day, hour, minute, and second |
| Printing Speed | Manual control |
| Screen Display | Displays all printing parameters clearly, with one-touch setting changes |
| Printing Direction | 360-degree adjustable |
| Printing Material | Suitable for both permeable and non-permeable materials |
| Ink Colors | Available in multiple colors including black, red, blue, yellow, white, and others |
| Ink Types | Water-based ink (for permeable surfaces) or oil-based ink(for non-permeable surfaces) |
| Machine Weight | Approximately 1 .5 kg |
Proofing Effect Display
The Faith Handjet Large Character Portable Printer delivers exceptional print quality, showcasing its ability to produce detailed logos, small fonts, and complex patterns with remarkable precision. This advanced printing technology ensures that every design element is rendered with clarity, making it perfect for a variety of applications, from product labeling to promotional materials. Users can expect vibrant colors that bring their brand to life, enhancing the overall aesthetic appeal of their products.
Printing content: real-time date clock, printing batch, counting, shift, font upside down, left and right flip, real-time date clock, printing batch, counting, shift, font upside down, left and right flip, date.
Product Details
 |
Each wheel is secured with a set screw,allowing for adjustment of the wheel spacing.The four-wheel design facilitates pipe handlingand is suitable for uneven surfaces |
Nozzle Casing Design
The front face of the nozzlecasing is designed with aninward curve to facilitate therotation of the nozzle.
The single-side protrusion onthe nozzle end helps protectthe nozzle.
Detailed Design
The nozzle allows for adjustableprint height and is stable and durable,capable of withstanding acid andalkaline corrosion.
Packing List
Qualification Certification: Meeting Global Standards
Our Handjet Large Character Portable Printer meets CE, ISO, and ROHS certifications, ensuring compliance with international quality and safety standards.
Exhibition: See Us in Action
We regularly showcase our Handjet Large Character Portable Printer at leading industry exhibitions worldwide. Visit our website for upcoming event details and experience our innovative solutions firsthand.

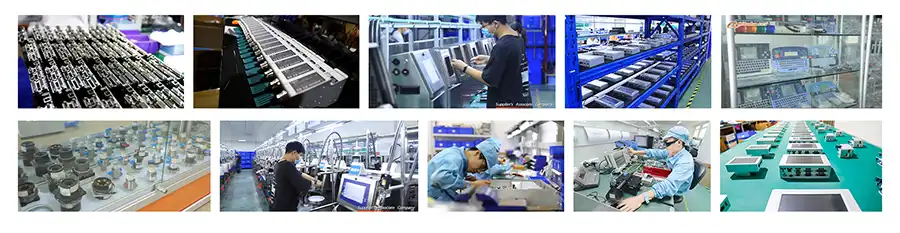

Factory Strength: Innovation Meets Production Excellence
Our state-of-the-art 2,500m2 production facility, coupled with our team of 300+ engineers, enables us to deliver cutting-edge printing solutions that meet the evolving needs of our global clientele.
FAQ
Q1: What is the character height of the large character handheld inkjet printer?
A2: 16-dot machine 10-60mm
32-dot machine 10-120mm
Q2: What is the printing speed of the handheld printer?
A2: The machine has a synchronous wheel, and the printing speed is manually controlled
Q3: What is the ink capacity?
A3: The ink and cleaning agent are both 200ml
Q4: How many characters are typed?
A4: The 16-point machine can print about 12,000 characters
The 32-point machine can print about 6,000 characters
Q5: What is the content of the print?
A5: The 16-point machine can print Chinese characters, numbers, English, graphics, and can also be mixed
The 32-point machine can print Chinese characters, numbers, English, graphics, and can also be mixed
The 7-point font can print numbers, English, and built-in Chinese characters
Q6: How much information can be stored?
A6: The H16 touch screen machine can store 100 text messages and 100 graphic messages
The H16 WIFI machine can store 200 text messages and 100 graphic messages
The H32 touch screen machine can store 100 text messages and 100 graphic messages
