PIJ Coding Machine
The siphon ink supply system can meet 360° arbitrary direction printing, and the unique structural design provides great expansion possibilities. An independent ink cartridge module can carry up to two print heads, and one machine can be connected to up to two independent ink cartridge modules, with four different types of printing.
Our services:2-year warranty, delivery within 30 days, 7×24 hours after-sales service, and support for OEM/ODM.
Shenyang Faith Technology Co., Ltd: Your Trusted PIJ Coding Machine Partner
Shenyang Faith Technology Co., Ltd is a leading manufacturer and supplier of PIJ Coding Machines. With 15+ years of R&D expertise and CE/ISO/ROHS-certified manufacturing, we deliver high-quality, reliable coding solutions. Our PIJ Coding Machines offer unparalleled flexibility, precision, and efficiency for various industries worldwide.
Product Description
The Faith PIJ Coding Machine is a cutting-edge solution designed to meet the most demanding industrial coding requirements. Our innovative SD series micro print head module enables 360～ printing in any direction, making it ideal for vertical, horizontal, and flat surface applications. This versatile machine adapts to diverse production environments, ensuring consistent, high-quality coding across various materials and products.
Why Choose Us
1. Advanced Technology: Our PIJ Coding Machine incorporates state-of-the-art micro print head technology for superior performance.
2. Flexibility: The unique siphon ink supply system allows for multi-directional printing, adapting to your specific needs.
3. Scalability: Connect up to two independent ink cartridge modules for four different types of printing.
4. Global Support: With clients in 126 countries, we offer 24/7 technical assistance and a 2-year warranty.
5. Rapid Innovation: Our 2,500m2 production facility and 300-person engineering team ensure continuous product improvement.
Product Parameters
| SD Series | ||||||
| Model | SD50 | SD100 | SD200 | SD300 | SD70 | SD70PLUS |
| Nozzle | Ricoh GH220 | Ricoh G4 | Ricoh G5 | Ricoh G6 | Seiko 510 | Seiko 1020 |
| Physical Resolution (Y direction) |
300DPI | 600DPI | 180DPI | 360DPI | ||
| Motion Resolution (X direction) |
150-4400DPI adjustable | 100-1290DPI adjustable | ||||
| Software System | WINDOWS | |||||
| Print Height | 32.4mm | 54mm | 71.8mm | |||
| Printing Unit | A single host can control 1-4 printing units (same printing height) | |||||
| Printing Direction | Downward spray, side spray, side spray tilted upward 15° | Downward spray, side spray | ||||
| Printing Speed | 110m/min | 220m/min | 300m/min | 50m/min | ||
| Nozzle Material | Plastic head (without heating layer) | All-steel nozzle (durable, impact-resistant, with built-in heating) | Stainless steel structure, nozzle surface with stainless steel protection sheet, built-in temperature and voltage control module | |||
| Ignition Frequency (ink output speed) | 24KHZ | 30KHZ | 8.29KHZ-35PL 6.46KHZ-50PL |
12KHZ-12PL 8.29KHZ-35PL |
||
| Drop Size | 3/6/9PL | 7PL | 5PL | 35/50PL | 12/35PL | |
| Nozzle Number | 192 per row, 2 rows | 320 per row, 4 rows | 510 nozzles in 1 row | 510 nozzles in 2 rows | ||
| Communication | Gigabit Ethernet communication (computer version) | |||||
| Printing Distance | Within 3mm | |||||
| Applicable Temperature | 59°F(15°C)-104°F(40°C) | |||||
Product Advantages
- High-Speed Printing: Efficiently prints in real-time on fast production lines without compromising quality.
- High Resolution: Ensures clear, sharp text and patterns, even for small fonts and intricate designs.
- Durability: Logos and codes resist environmental factors like water, oil, and UV exposure, maintaining long-term readability.
- Cost-Effective: Designed for low operating costs with high ink utilization, making it a budget-friendly solution.
- Flexibility: Adapts easily to print on a variety of materials, enhancing its versatility in different industries.
User Guide
Operating our PIJ Coding Machine is straightforward:
1. Power on and allow system initialization.
2. Load ink cartridges and prime the system.
3. Set up your desired print job using the touch screen interface.
4. Adjust print head position for optimal coding placement.
5. Start your production line and monitor print quality.
For detailed instructions, refer to the comprehensive user manual provided with your machine.
Sustainability: Utilizes eco-friendly inks and high energy efficiency, aligning with modern environmental standards.
| PlJ inkjet printer | VS | Other inkjet printers |
| 600 DPI high-resolution printing | Precision | Low precisionprint details are blurry |
| Print head anti-clogging technologyeasy to clean | Print head | Ink clogging in the print headtroublesome cleaning |
| Warious eco-friendly inkssuitable for different materials | Ink | Poor ink adhesioneasily erased |
| Over 216mmlarge-format printing | Printing area | Limited printing area |
| Over 600 meters printing speed | Printing speed | Printing speed within 200 meters |
Multi-Head Printing Seamless Splicing
Printhead brands (Ricoh/Seiko) available for selection
Ink Cost Management
1.Printing a QR code with 10 digits, the ink consumption is as follows
| Size | Resolution | Ink consumption | Print quantity per bottle (500ml) |
| 10*10mm | 600*600DPI | 5000 pieces/ml | 2.5 million pieces |
| 10*10mm | 600*1200DPI | 2500 pieces/ml | 1.25 million pieces |
| 10*10mm | 300*600DPI | 10000 pieces/ml | 5 million pieces |
The DPl before is the physical (vertical) DPl, while the one after is the motion (horizontal)DPl. Adding more nozzles can change the DPl, but it doesn't have practical significance.The primary purpose of adding more nozzles is to print larger fonts or more content.
2.Printing the character "W," the ink consumption is as follows
| Size | Resolution | Ink consumption | Print quantity per bottle (500ml) |
| 3mm | 300*600 DPI | 220,000 pieces/ml | 110 million pieces |
| 3mm | 300*1200 DPI | 120,000 pieces/ml | 60 million pieces |
| 3mm | 600*600 DPI | 110,000 pieces/ml | 55 million pieces |
| 3mm | 600*120 DPI | 60,000 pieces/ml | 30 million pieces |
Self-developed Printing System Software
Printed Content
Product Details
|
|
|
|
|
|
| Supports 360-degree printing. The print head assembly regulator features multidimensionaladjustment, allowing for up-and-down, side-to-side, and angleadjustments. This high flexibility meets the more complexneeds of customers. |
Eco-friendly ink. Uses eco-friendly UV ink that has passed ROHS certificationand provides a detailed MSDS report. lt adapts to differentmaterials and meets reauirements for adhesion. alcoholresistance, and high/ow-temperature durability, aligning withfuture environmental trends. UV ink offers excellent adhesionand long-lasting color performance. |
New print head anti-clogging technologymaintains print head humidity. Equipped with a print head cleaning function and features delayed spray for reduced maintenance costs, enhancingequipment stability and ensuring reliable quality |
Powerful network communication capabilities Equipped with a network protocol communication interfacethat can connect and communicate with ERP, MES systemsand various specialized software, enabling various complexidentification applications. |
Operating interface Convenient information editing is facilitated by a 13.3-inch1080P industrial-grade touchscreen. The new user interfaceallows for direct editing of various text graphics and variabledata such as 2D barcodes. Additionally, content can be directlyuploaded via USB interface or network protocol. |
Application Areas
The Faith PIJ Coding Machine excels in various industries:
1. Food and Beverage: Date coding, batch numbers, and traceability information.
2. Pharmaceutical: Serialization, compliance coding, and anti-counterfeiting measures.
3. Electronics: Component marking and product identification.
4. Automotive: Part numbering and VIN coding.
5. Chemical: Safety information and batch coding on diverse packaging.
Our PIJ Coding Machine adapts to your specific industry requirements, ensuring compliance and enhancing your product traceability.
Proofing Effect Display
Experience the exceptional print quality of our PIJ Coding Machine. View high-resolution images of actual prints on various surfaces and materials in our online gallery.
After-sales Service
Our commitment to your success extends beyond the sale. We provide comprehensive after-sales support, including:
- 24/7 technical assistance
- Rapid response times for on-site service
- Regular software updates
- Customized training programs
Qualification Certification
Faith's PIJ Coding Machines meet international standards, holding CE, ISO 9001, and RoHS certifications. Our rigorous quality control ensures reliability and compliance across global markets.
Exhibition
Visit us at major industry events like the Hannover Messe and CIIE to see our PIJ Coding Machines in action and discuss your specific needs with our experts.
Factory Strength

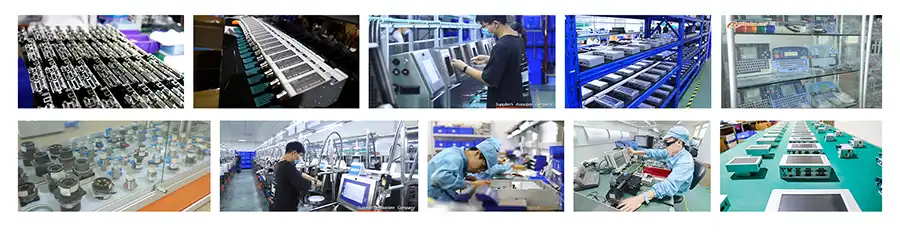

Our state-of-the-art 2,500m2 production facility, coupled with our team of 300 skilled engineers, positions us at the forefront of coding technology innovation.
FAQ
Q: What materials can the product print on?
A: It can print on a wide range of materials including plastic, glass, metal, and paper.
Q: Is the printer easy to integrate into existing systems?
A: Yes, the product is designed for seamless integration into automation systems.
Q: Does it support remote management?
A: Yes, the printer allows for remote monitoring and management through network connectivity.
